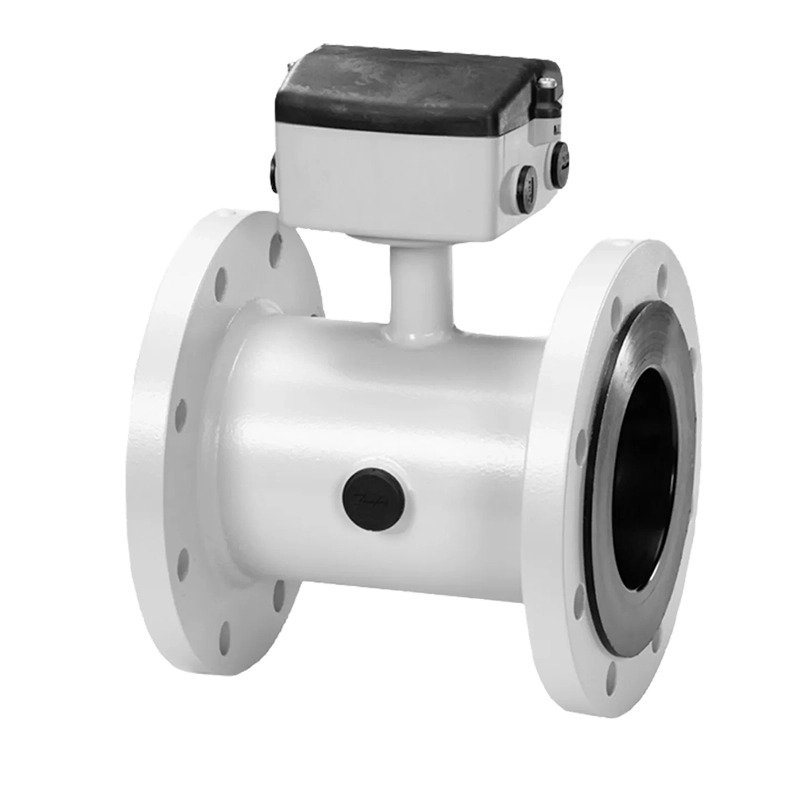

SIEMENS SITRANS FM MAG 5100 W electromagnetic flow sensor

The SITRANS FM MAG 5100 W with its patented liners of hard rubber NBR or ebonite and EPDM is a sensor for all water applications such as ground water, drinking water, cooling water, wastewater, sewage or sludge applications.

Benefits:

• Zero Up and Zero Down installation capabilities for flexible installation options.
• Lining specifically designed for drinking water applications with special approvals.
• Increased low flow accuracy for water leak detection with NBR or EPDM lining.
• Suitable for underground installation and permanent immersion (IP68) or underwater installation.
• Integrated grounding electrodes eliminate the need for grounding rings in many applications.
• Short delivery time, ensuring quick implementation.
• Integration with SITRANS FM portfolio: The MAG 5000/6000 transmitter can be flexibly used with all products (MAG 5100/3100/1100).
• Unique SensorProm technology: Critical, sensor-specific data is stored and passed to the transmitter, allowing for simple and flexible sensor commissioning.
• Plug & Play: Enables easy on-site replacement and commissioning of the transmitter in just minutes.
• “Hot swappable”: The transmitter can be exchanged during operation.
• Mounting flexibility: Compact or separate installation options are available.
• Validated calibration: Each Siemens flowmeter is calibrated in facilities accredited to ISO/IEC 17025, ensuring accurate flow measurement.
• Service and diagnostics: Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.

• Meassuring range	0 to 10 m/s
  Nominal sizes	From DN 15 to DN 2000 (1″ to 78″)
  Accuracy	0.2 % ±2.5 mm/s
  Operating pressure	Max. 16 bar (Max. 150 psi)
  Ambient temperature	From -40 to 70 °C (-40 to 158 °F)
  Medium tempreature	From -10 to 70 °C (14 to 158 °F)
  Liners	EPDM NBR hard rubber Ebonite hard rubber
  Electrodes	Hastelloy C-276 Built-in grounding electrodes
  Material	Carbon steel, with corrosion resistant?two-component epoxy coating
  Drinking water wpprovals	EPDM: WRAS, NSF/ANSI Standard 61, DVGW 270,?ACS and BelgAqua NBR: NSF/ANSI Standard 61, WRAS Ebonite: WRAS
  Custody transfer approvals	OILM R 49 MI-001 PTB K7.2 (Germany) BEV OE12/C040 (Austria)
  General approval	MCERTS Sira Certificate No. MC080136/09
