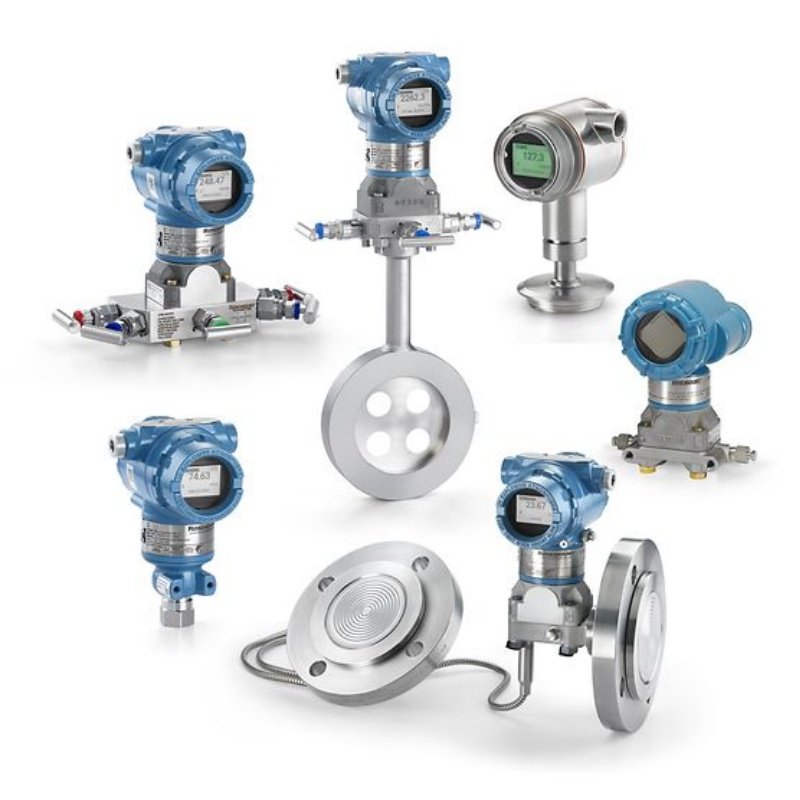

Rosemount 3051 Pressure Transmitter Family

Product Description

Experience the advantages of cutting-edge capabilities and reliable performance with the renowned Rosemount 3051 Pressure Transmitter. With an extraordinary installed base exceeding 10 million devices, this family of pressure transmitters provides a comprehensive solution for precise measurement of pressure, level, and flow.

Specifications

Warranty

Up to 5-year limited warranty

Rangedown

Up to 150:1

Communication Protocol

4-20 mA HART^?,?WirelessHART^?, FOUNDATION? fieldbus, PROFIBUS^?, 1-5 V Low Power HART^?

Measurement Range

Coplanar: Up to 4000 psi (275,79 bar)
Inline: Up to 20000 psi (1378,95 bar)

Process Wetted Material

316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST

Diagnostics

Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics

Certifications/Approvals

SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE^?, hazardous location, see full specs for complete list of certifications
