PRODUCT DETAILS
| Power Requirements | 10-36 VDC (2-wire), 17-36 VDC Or Isolated 21.6-33 VAC (3-wire) | Pressure Range | -125 TO 125 Pa |
|---|---|---|---|
| Display | 4 Digit LCD | Temperature Limits | -4 To 158°F (-20 To 70°C) |
| Current Output | 0-1250 Ω Max | Service | Air And Non-combustible, Compatible Gases |
| Weight | 8.0 Oz (230 G) | ||
| High Light |
Differential Pressure Transmitter MSXP-W10-PADifferential Digital Pressure GaugeDifferential Pressure Level Transmitter |
||
| Place of Origin | USA |
|---|---|
| Brand Name | |
| Certification | CE |
| Model Number | MSXP-W10-PA |
| Minimum Order Quantity | 1 |
| Price | USD 90 |
| Packaging Details | CARTON |
| Delivery Time | 5-7 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
PRODUCT DESCRIPTION

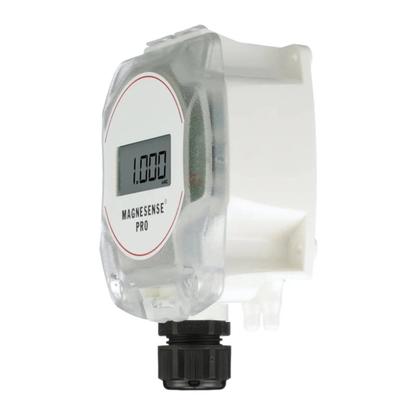

The Series MSX Pro Differential Pressure Transmitter is the professional differential pressure transmitter meeting stringent industry standards with innovative global product design. The device has exceptional stability for use in critical building performance applications with the popular versatility of our original Series MS2 I transmitter. The MSX Pro simplifies the ordering process to deliver the desired configuration, which reduces product setup time. Pressure ranges of Pa, mm w.c., and in w.c. are available per device. All pressure ranges can be configured in unidirectional or bidirectional modes providing a total of 32 ranges. The MSX Pro transmitter can provide a linear pressure output or a linear velocity output with the square root extraction from the transmitter. Additional parameters have been included to expand the square root capability to calculate flow. Dual voltage and milliamp output signals can be used to provide control and equipment output signal verification.
