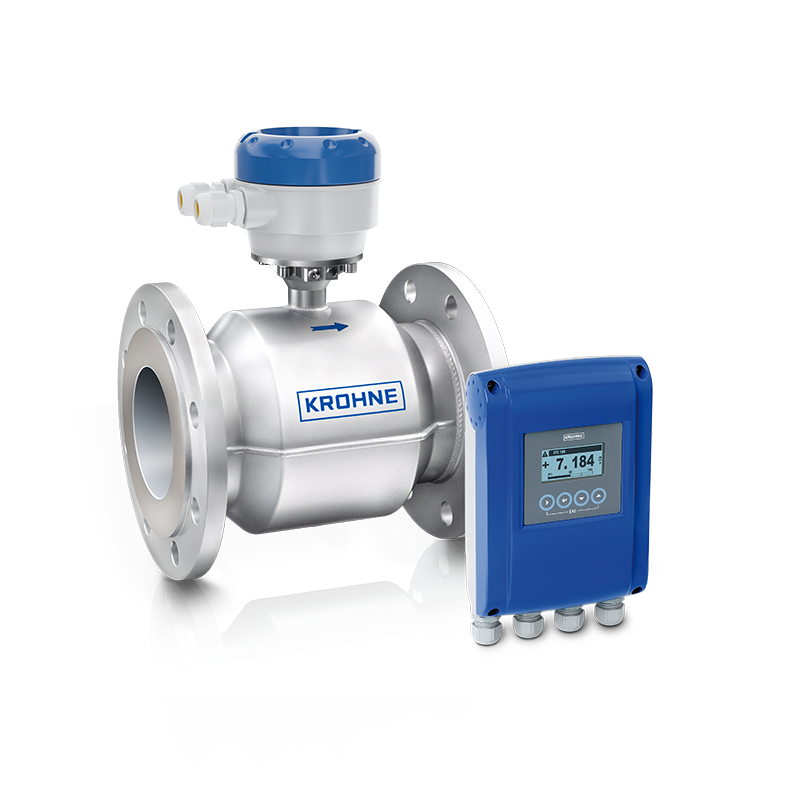

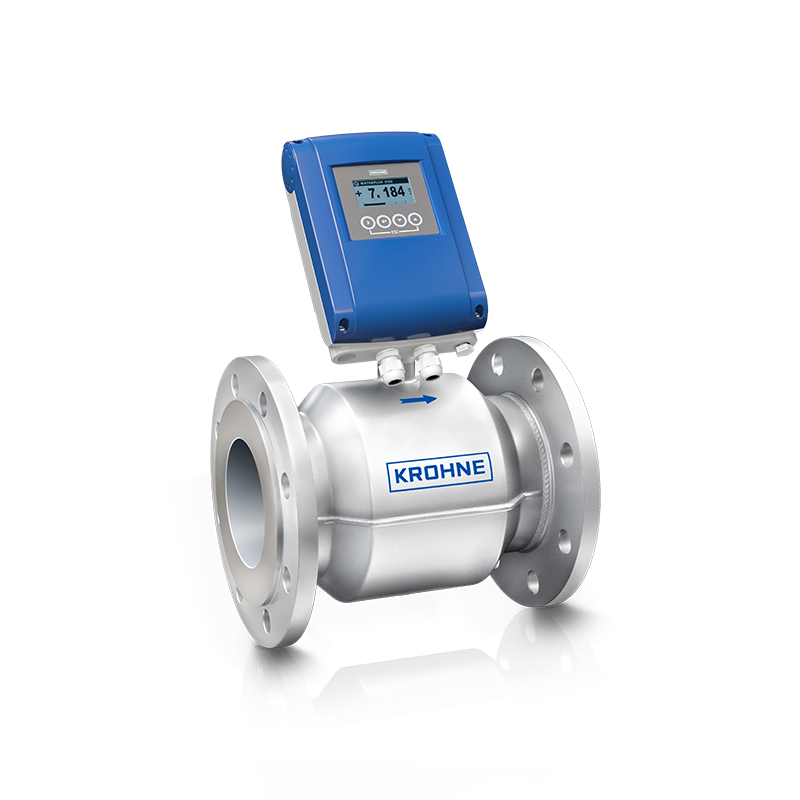

KROHNE WATERFLUX 3100 Electromagnetic flowmeter for standard water applications

Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | WATERFLUX |
| Product positioning | For standard water applications |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 16 barg/ 230 psig |
| Process temperature | -5…+70°C/ +23…+158°F |
Materials
| Liner | Polyamide polymer 11 (Rilsan?) |
Process connections
| Flange connections | EN (1092-1): DN25…600 ASME (B 16.5): 1…24″ JIS (B 2220): 25…600A |
| Thread connections | Male: G1, G1?, G2 |
Approvals/Standards
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
| Certificates/Approvals Potable Water | DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS |
Communication
| Analogue outputs | 4…20?mA |
| Discrete outputs | Pulse, Frequency, Status |
| Digital outputs | HART? |
