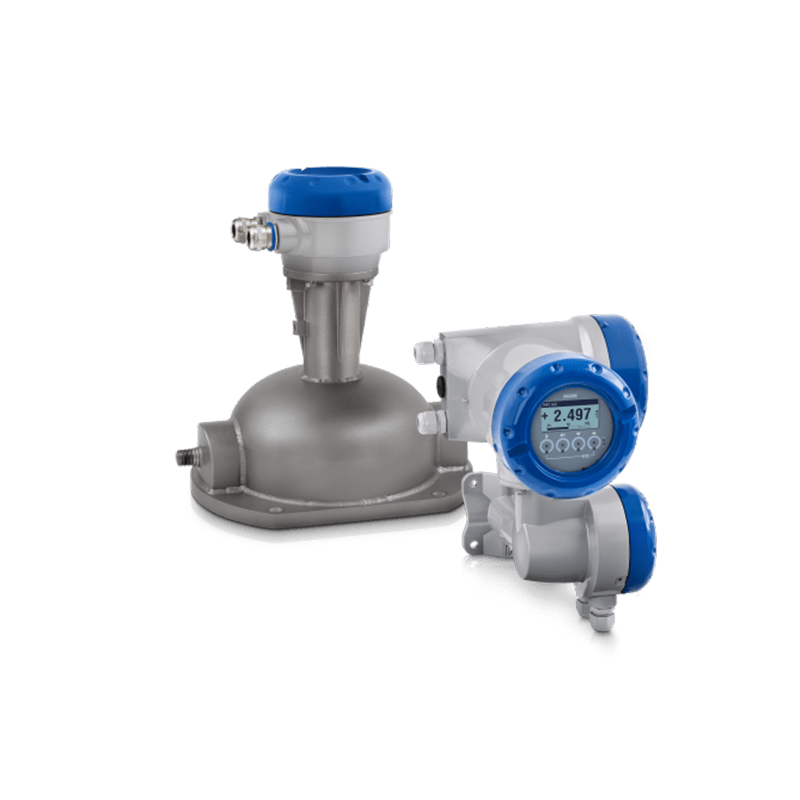

KROHNE OPTIMASS 3400 Coriolis mass flowmeter for low flow and dosing applications
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIMASS |
| Product positioning | For low flow and dosing applications |
| Measurement principle | Coriolis |
| Measured media | Liquids, Gases |
Operating conditions
| Process pressure | max. 300 barg/ 4351 psig |
| Process temperature | -40…+150°C/ -40…+302°F |
Materials
| Measuring tube | Austenitic stainless steel (1.4404/316L), Austenitic alloy (2.4602/Alloy 22) |
Process connections
| Flange connections | EN (1092-1): DN15 ASME (B 16.5): ?” JIS (B 2220): 15A |
| Thread connections | Female: ? NPT |
| Other connections | Welded end |
| Hygienic connections | Clamp (DIN 32676): DN10 Tri-Clamp: ? |
Approvals/Standards
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI, EAC Ex, cFMus, INMETRO, KCs, UKEX |
Communication
| Analogue outputs | 4…20?mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | FOUNDATION? fieldbus, HART?, Profibus-PA, Profibus-DP, Modbus?RTU, EtherNet/IP?, PROFINET, Bluetooth |
