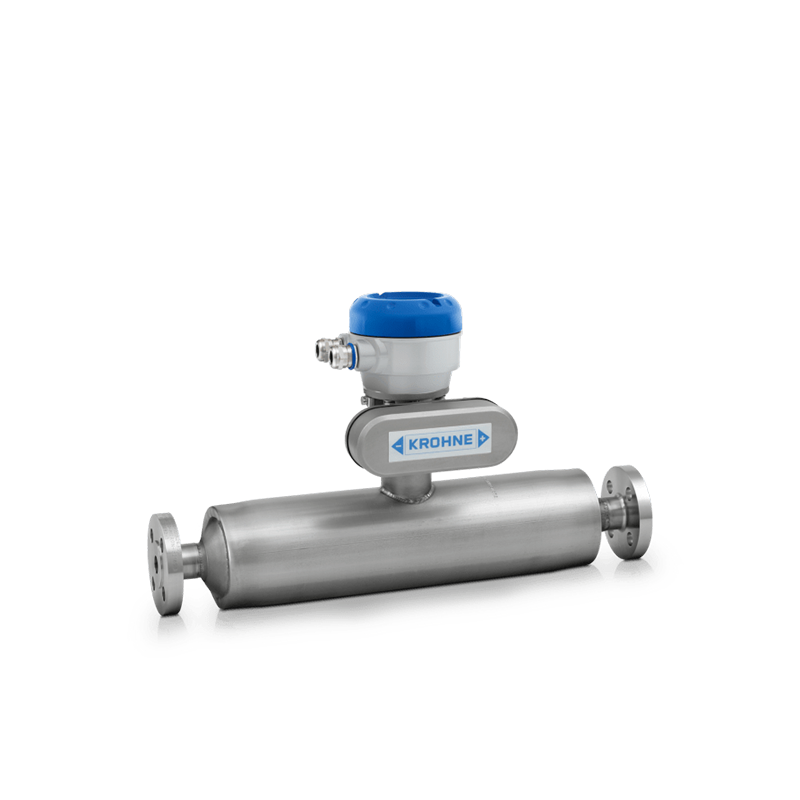

KROHNE OPTIMASS 1010 Coriolis mass flowmeter for universal applications and process control
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIMASS |
| Product positioning | For universal applications and process control |
| Product variants | |
| Measurement principle | Coriolis |
| Measured media | Liquids, Gases |
Operating conditions
| Process pressure | max. 100 barg/ 1450 psig |
| Process temperature | -40…+130°C/ -40…+266°F |
Materials
| Measuring tube | Duplex stainless steel (1.4462/318) |
Process connections
| Flange connections | EN (1092-1): DN15…100 ASME (B 16.5): ?…4″ JIS (B 2220): 15…80A |
| Hygienic connections | Clamp (DIN 32676): DN25, DN40, DN50, DN80 Clamp (ISO 2852): 25, 40, 51, 76.1 Tri-Clamp: 1″, 1?”, 2″, 3″ Threaded ferrule (DIN 11851): DN25, DN40, DN50, DN80 Flange with groove (DIN 11864-2A): DN25, DN40, DN50, DN80; Threaded ferrule (SMS 1146): 25 mm, 38 mm, 51 mm, 76 mm |
Approvals/Standards
| Certificates/Approvals Ex | ATEX, IECEx, EAC Ex, INMETRO, FM |
| Certificates/Approvals Hygienic | FDA, 3A, EHEDG, EC 1935/2004 |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
Communication
| Digital outputs | Modbus?RTU, EtherNet/IP? |
