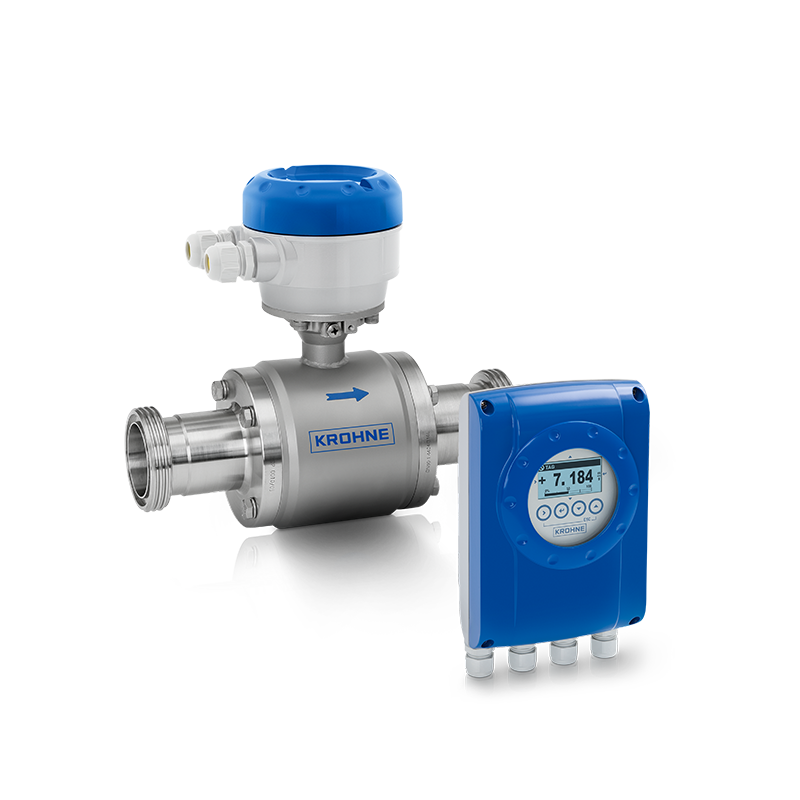

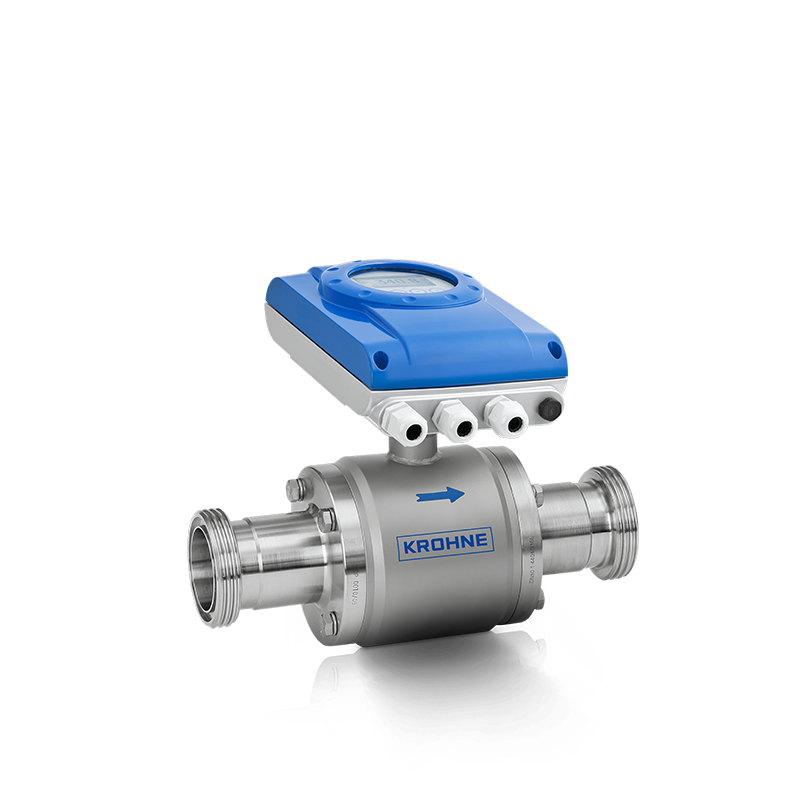

KROHNE OPTIFLUX 6050 Electromagnetic flowmeter for basic hygienic applications
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIFLUX |
| Product positioning | For basic hygienic applications |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 40 barg/ 580 psig |
| Process temperature | -40…+140°C/ -40…+284°F |
Materials
| Liner | Perfluoroalkoxy alkane (PFA) |
Process connections
| Hygienic connections | Clamp (DIN 32676): DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150 Clamp (ISO 2852): 12, 17.2, 25, 38, 51, 63.5, 76.1, 101.6, 114.3, 139.7 Tri-Clamp: ?”, ?”, 1″, 1?”, 2″, 2?”, 3″, 4″, 5″, 6″ Threaded ferrule (DIN 11851): DN10, DN15, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150 Flange with groove (DIN 11864-2A): DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150 Threaded ferrule (SMS 1146): 25 mm, 38 mm, 51 mm, 63.5 mm, 76 mm, 101.6 mm Aseptic weld end fitting (DIN 11850?/ EN 10357): DN2.5, DN4, DN6, DN10, DN15, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150 Aseptic weld end fitting (ISO?2037): 12, 17.2, 25, 38, 51, 63.5, 76.1, 101.6, 114.3, 139.7 |
Approvals/Standards
| Certificates/Approvals Hygienic | FDA, EHEDG, EC 1935/2004 |
Communication
| Analogue outputs | 4…20?mA |
| Discrete outputs | Pulse, Frequency, Status |
| Digital outputs | HART?, Modbus?RTU |
