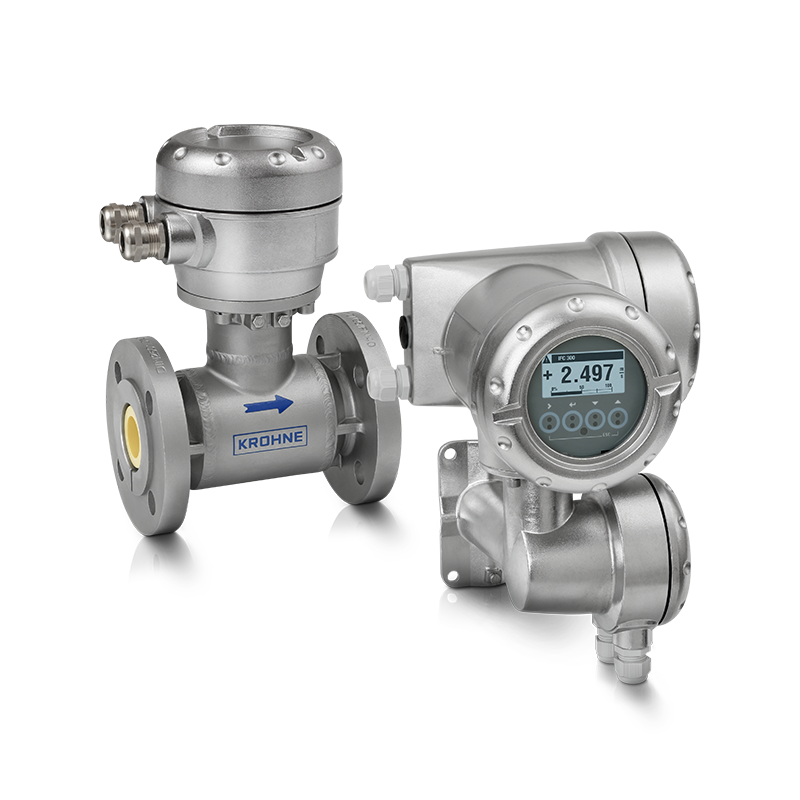

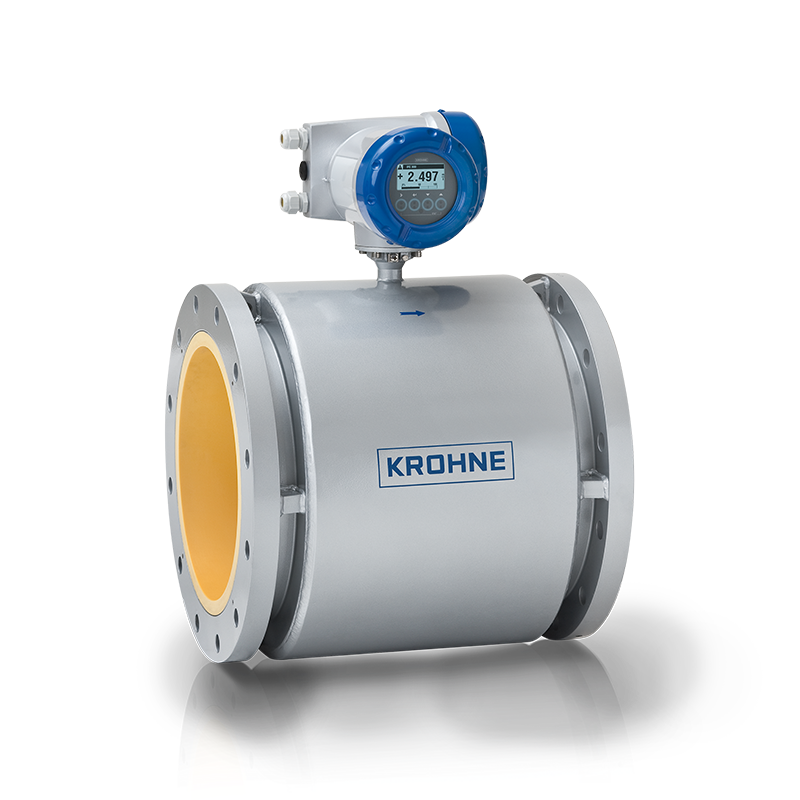

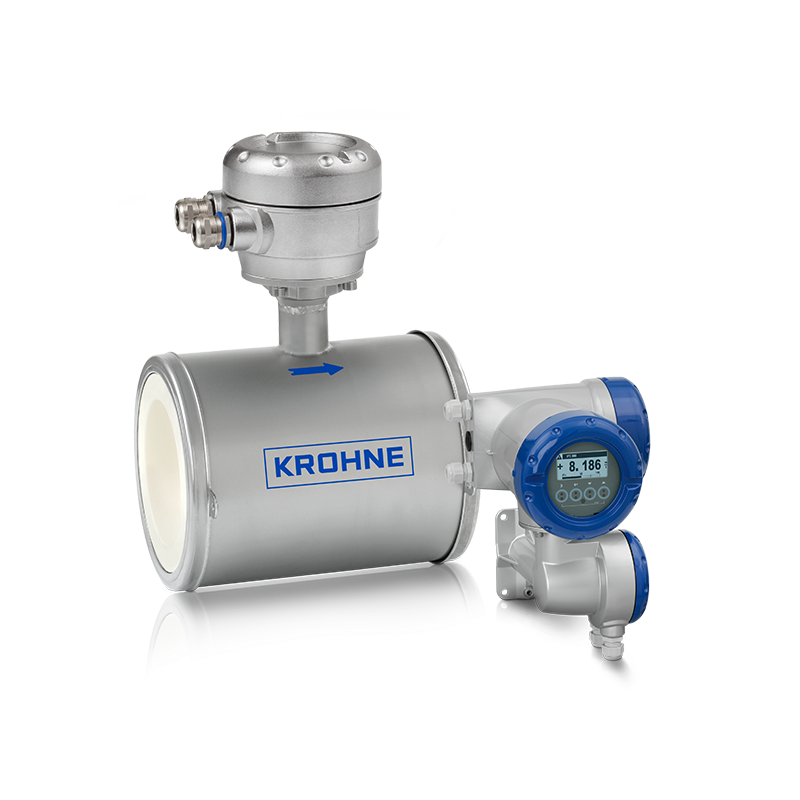

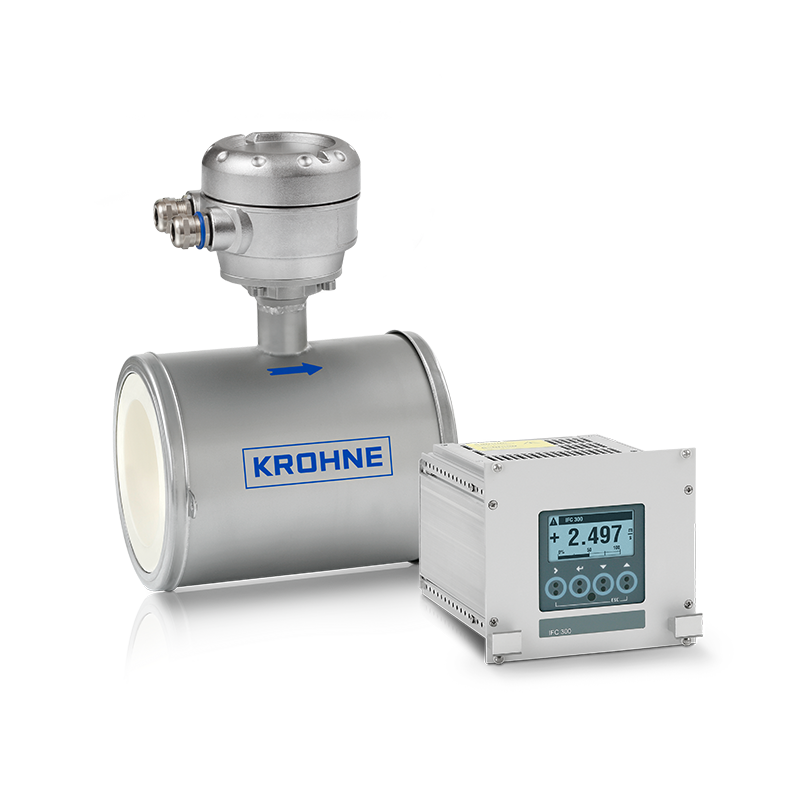

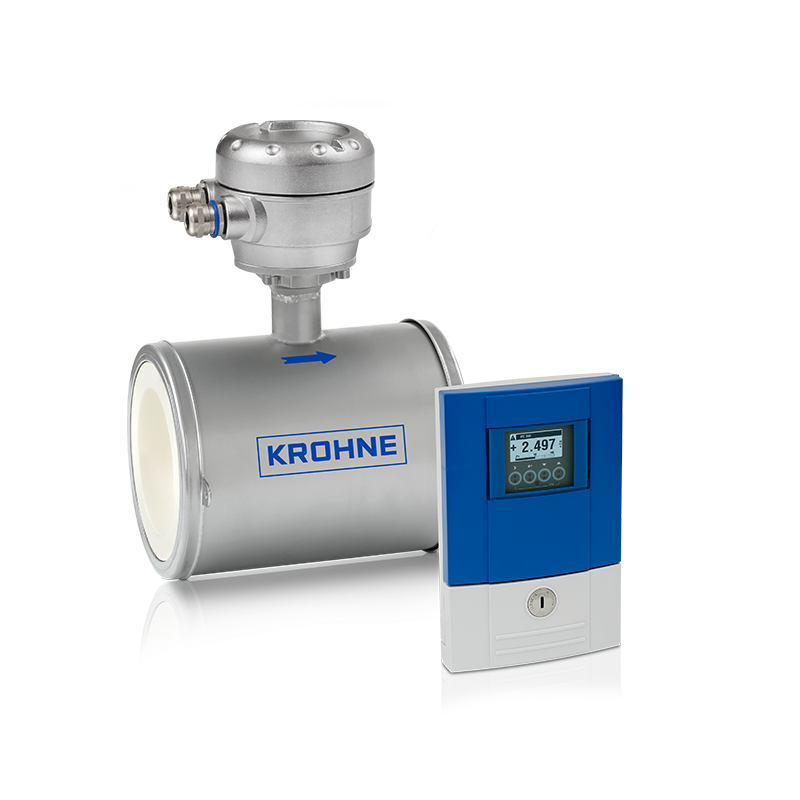

KROHNE OPTIFLUX 5300 Electromagnetic flowmeter for advanced process and master meter applications
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIFLUX |
| Product positioning | For advanced process, custody transfer (CT) and master meter applications |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 40 barg/ 580 psig |
| Process temperature | -40…+180°C/ -40…+356°F |
Materials
| Measuring tube | Ceramic (ZrO2 or Al2O3) |
Process connections

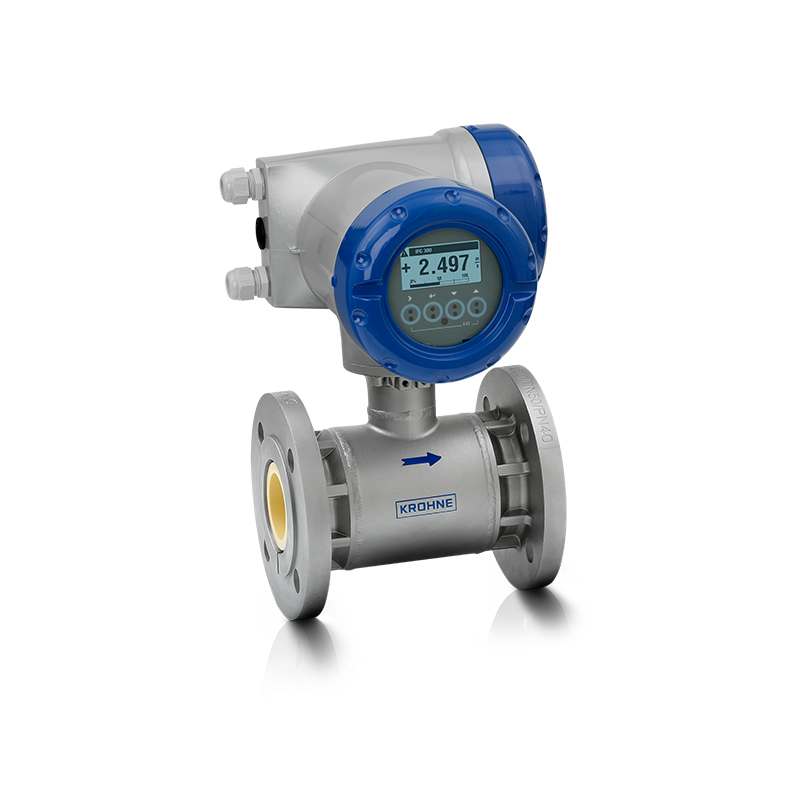

| Flange connections | EN (1092-1): DN15…300 ASME (B 16.5): ?…12″ |

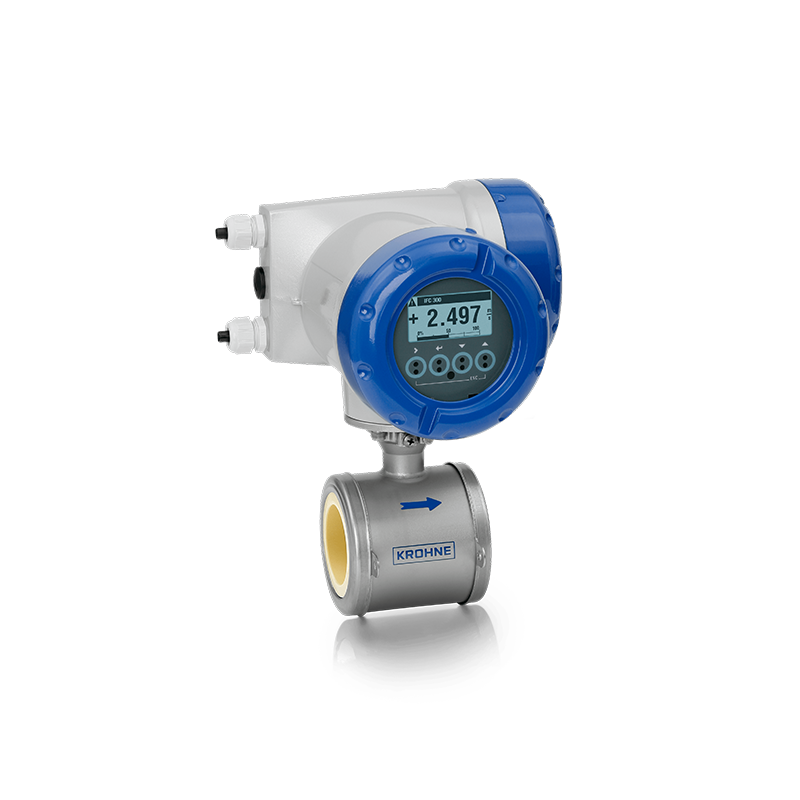

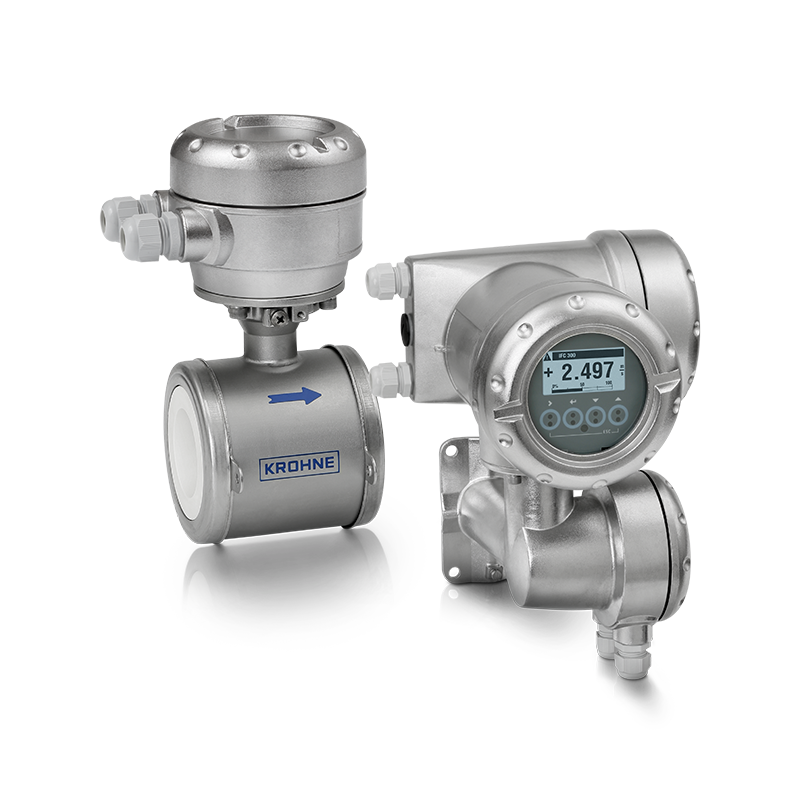

| Other connections | Sandwich (wafer) connection: DN2.5…100 ?…4″ |
Approvals/Standards
| Certificates/Approvals Custody transfer (CT) | MI-005, OIML R117 |
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI, EAC Ex, INMETRO, FM, CSA, KCs, PESO, IA |
| Certificates/Approvals Hygienic | FDA, EC 1935/2004 |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
Communication
| Analogue outputs | 4…20?mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | FOUNDATION? fieldbus, HART?, Profibus-PA, Profibus-DP, Modbus?RTU, PROFINET |
