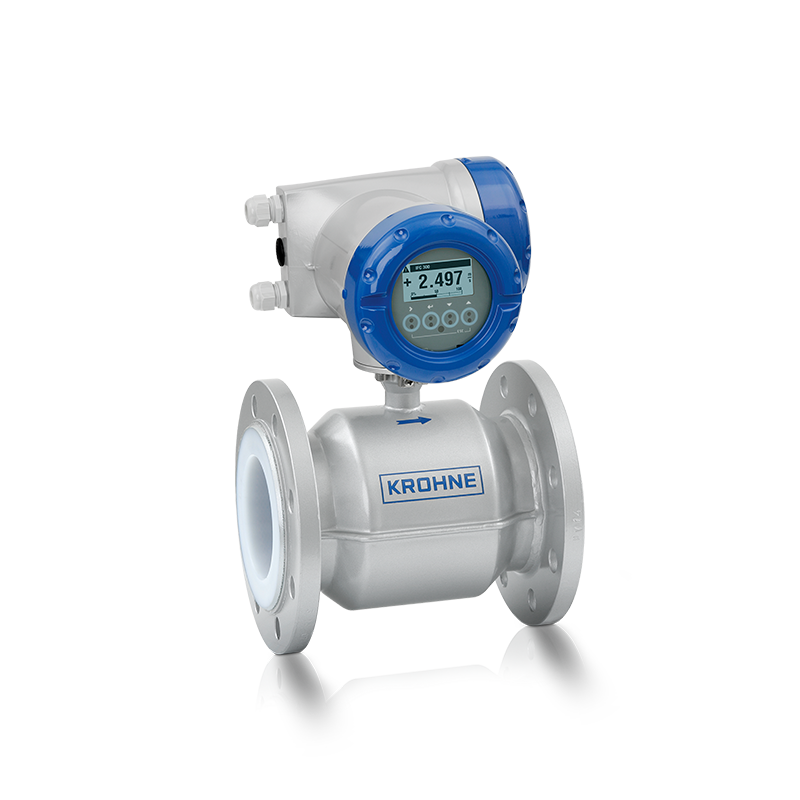

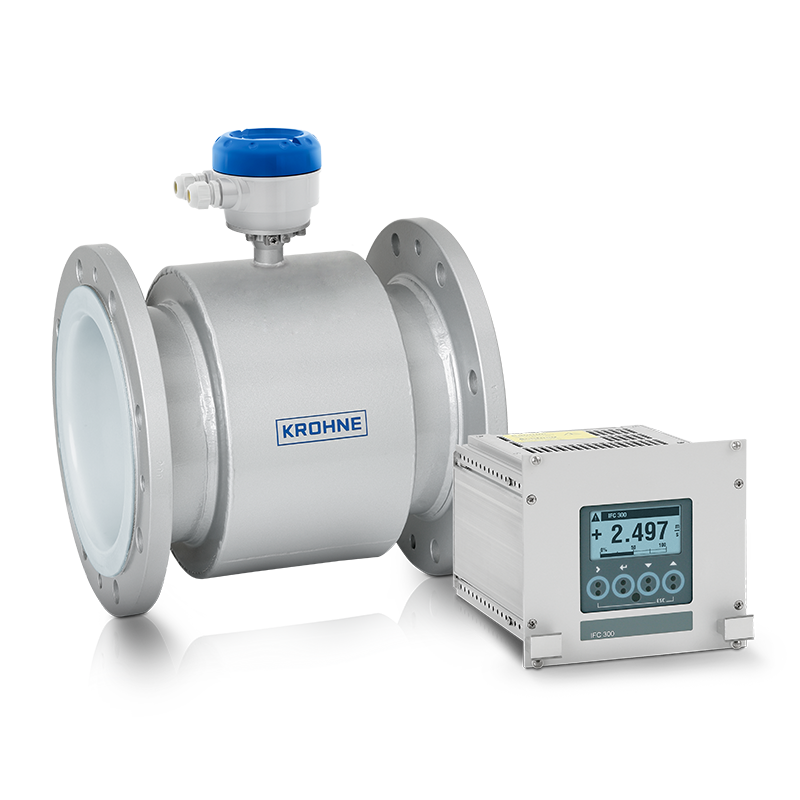

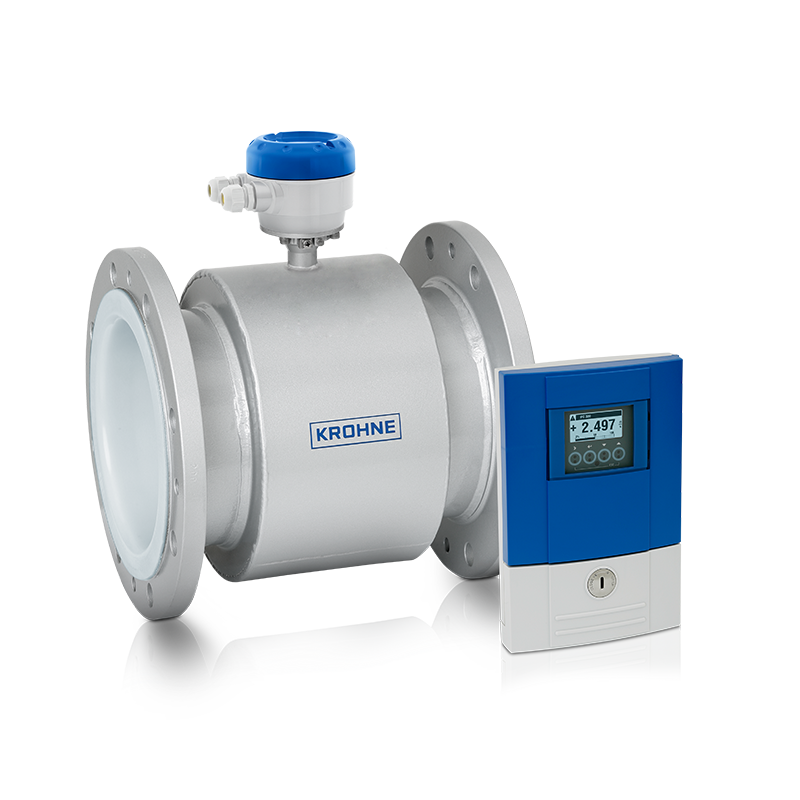

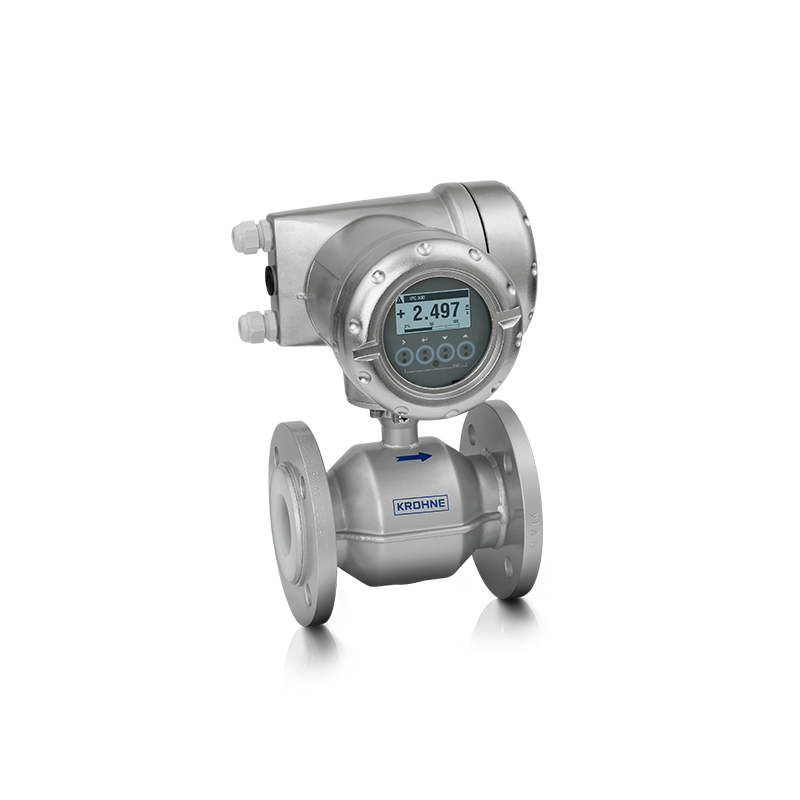

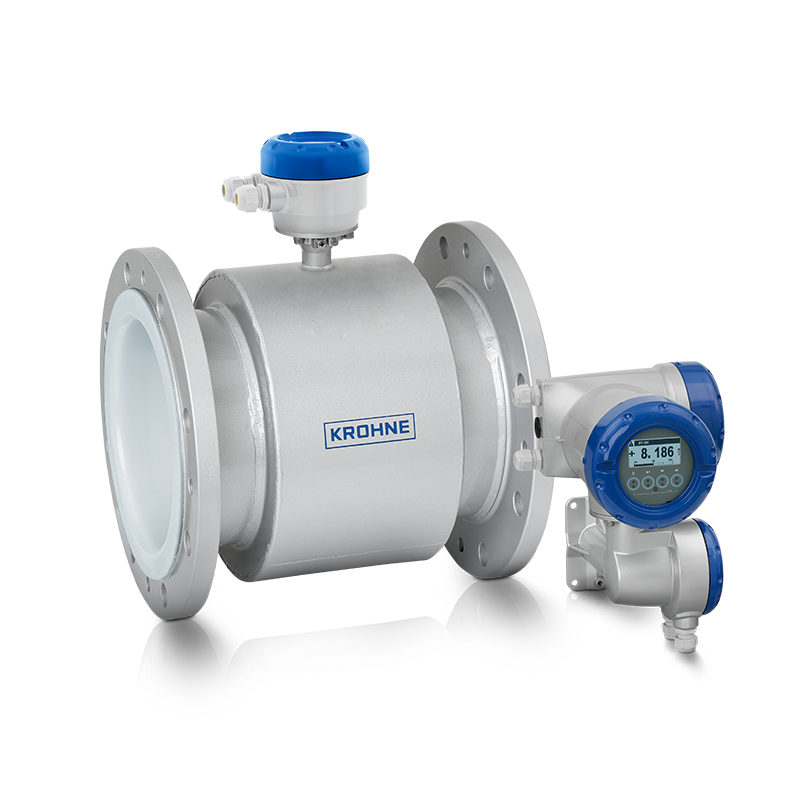

KROHNE OPTIFLUX 4300 Electromagnetic flowmeter for advanced process and custody transfer (CT) applications
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIFLUX |
| Product positioning | For advanced process and custody transfer (CT) applications |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 40 barg/ 580 psig (higher on request) |
| Process temperature | -40…+180°C/ -40…+356°F |
Materials
| Liner | Perfluoroalkoxy alkane (PFA), Polytetrafluoroethylene (PTFE), Polyuretane (PUR), Hard rubber, Ethylene tetrafluoroethylene (ETFE), Soft rubber |
Process connections
| Flange connections | EN (1092-1): DN2.5…3000 ASME (B 16.5): ?…120″ JIS (B 2220): 2.5…1000A |
Approvals/Standards
| Certificates/Approvals Custody transfer (CT) | MI-001, MI-004, MI-005, OIML R117, OIML R49 |
| Certificates/Approvals Ex | ATEX, cQPSus, IECEx, NEPSI, EAC Ex, INMETRO, FM, CSA, KCs, PESO, IA |
| Certificates/Approvals Hygienic | FDA |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
Communication
| Analogue outputs | 4…20?mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | FOUNDATION? fieldbus, HART?, Profibus-PA, Profibus-DP, Modbus?RTU, PROFINET |
