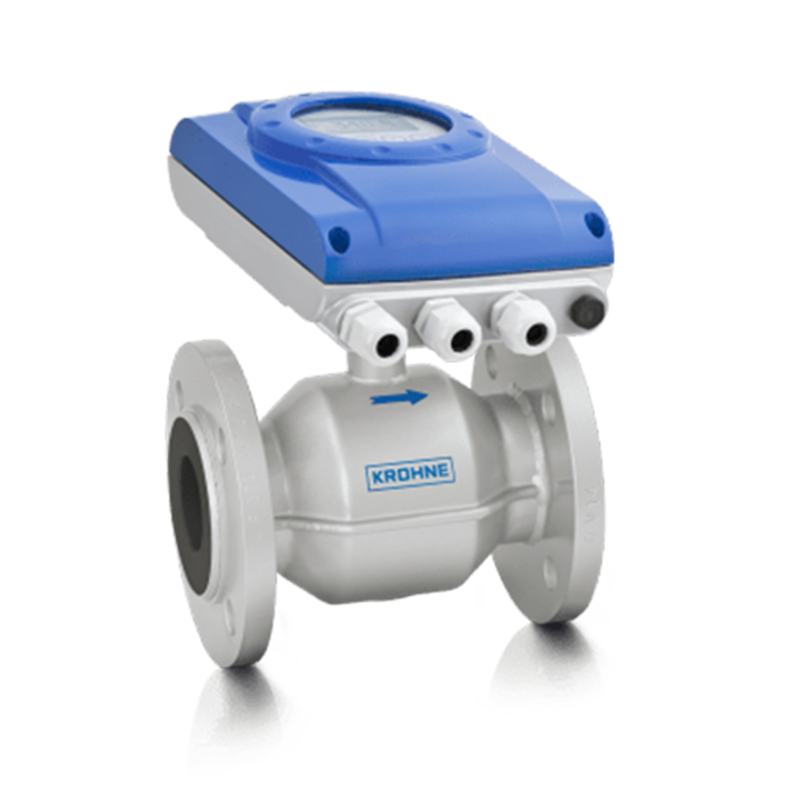

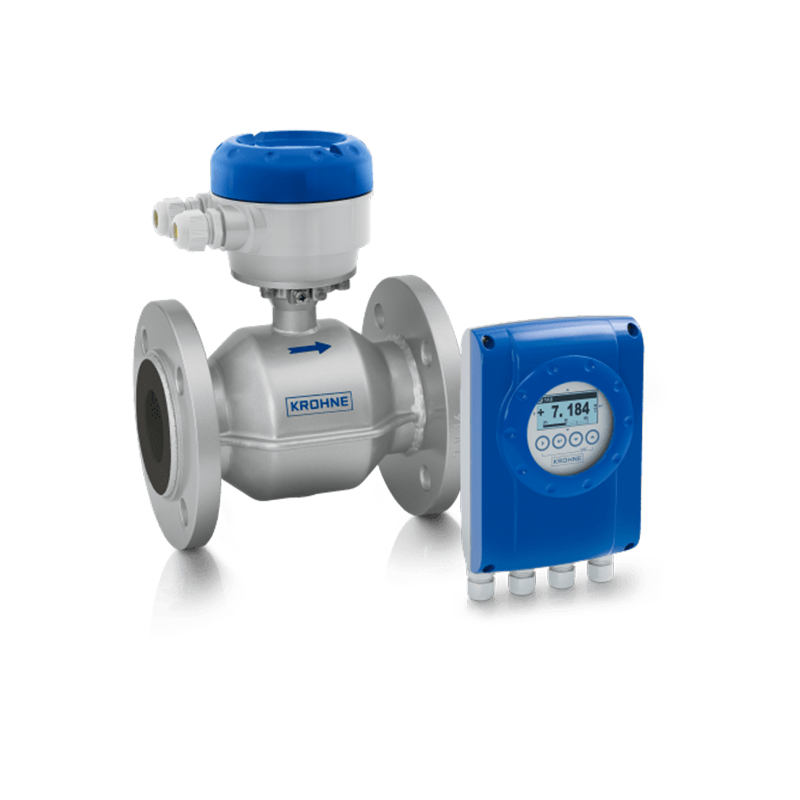

KROHNE OPTIFLUX 2050 Electromagnetic flowmeter for basic water and wastewater applications
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIFLUX |
| Product positioning | For basic water and wastewater applications |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 40 barg/ 580 psig |
| Process temperature | -5…+90°C/ +23…+194°F |
Materials
| Liner | Polypropylene (PP), Hard rubber |
Process connections
| Flange connections | EN (1092-1): DN25…1200 ASME (B 16.5): 1…48″ JIS (B 2220): 25…1000A |
Approvals/Standards
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
| Certificates/Approvals Potable Water | DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS |
Communication
| Analogue outputs | 4…20?mA |
| Discrete outputs | Pulse, Frequency, Status |
| Digital outputs | HART?, Modbus?RTU |
