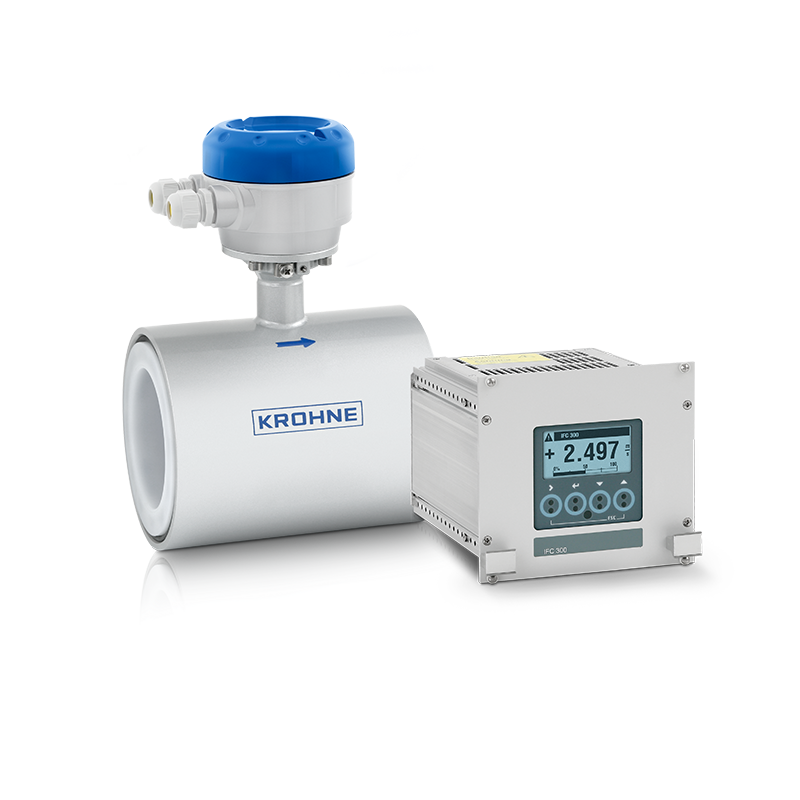

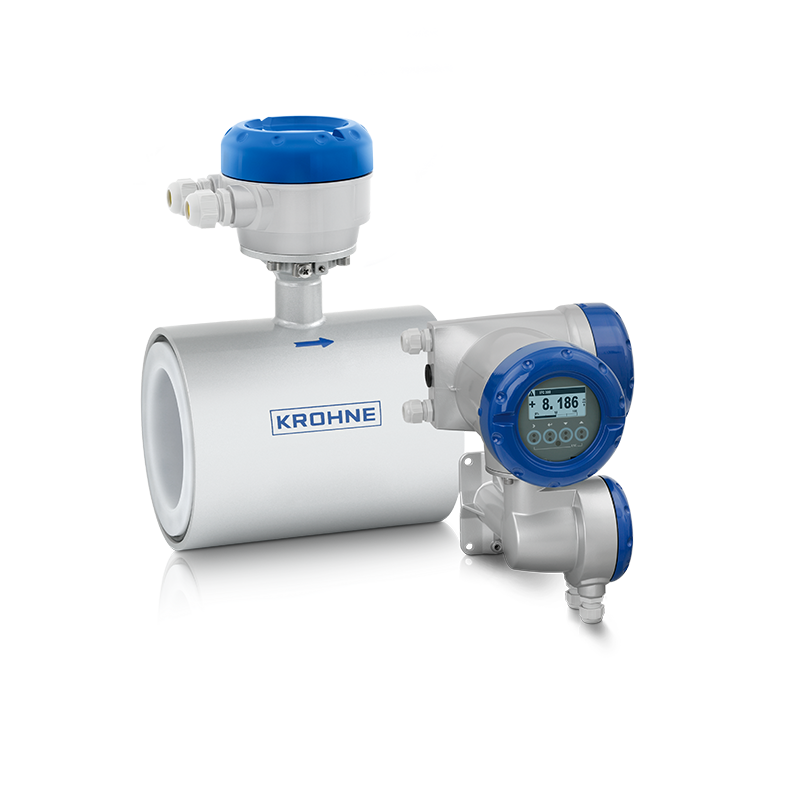

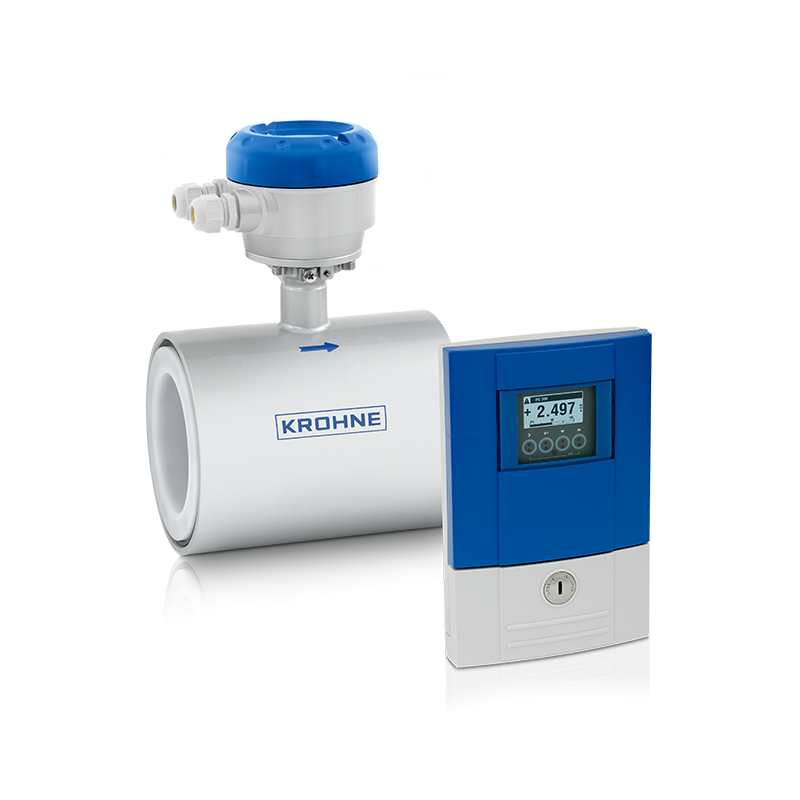

KROHNE OPTIFLUX 1300 Electromagnetic flowmeter for OEM applications, dosing systems and compact skids
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIFLUX |
| Product positioning | For OEM applications, dosing systems and compact skids |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 16 barg/ 230 psig |
| Process temperature | -25…+120°C/ -13…+248°F |
Materials
| Liner | Perfluoroalkoxy alkane (PFA) |
Process connections
| Flange connections | EN (1092-1): DN10…150 ASME (B 16.5): ?…6″ JIS (B 2220): 10…150A |
| Other connections | Sandwich (wafer) connection: DN10…150 ?…6″ 10…150A |
Approvals/Standards
| Certificates/Approvals Ex | ATEX, FM, CSA |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
Communication
| Analogue outputs | 4…20?mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | FOUNDATION? fieldbus, HART?, Profibus-PA, Profibus-DP, Modbus?RTU, PROFINET |
