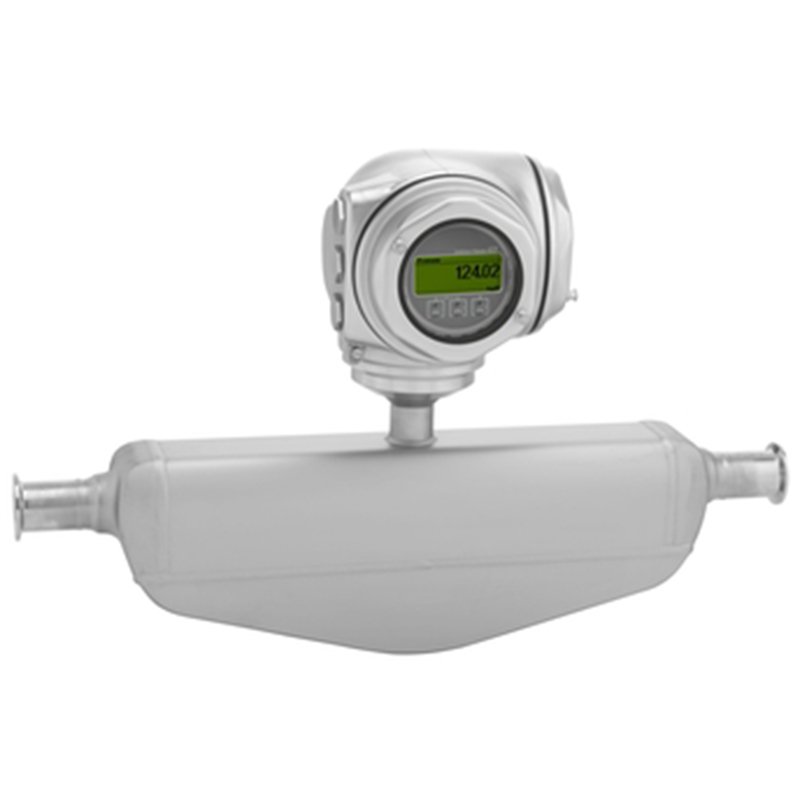

Endress+Hauser Proline Promass S 300 Coriolis flowmeter

Easy‐to‐clean, self‐drainable single‐tube system with a compact, easily accessible transmitter

• Measuring principle

  Coriolis

• Product headline

  The Promass E 300 features an easy-to-clean, self-drainable single-tube system with a compact, easily accessible transmitter. It is dedicated to applications requiring optimal cleanability under hygienic conditions.

• Sensor features

  The sensor offers increased process safety with an easily cleanable and fully self-drainable tube design. It provides multivariable measurement (flow, density, temperature) with fewer process measuring points and space-saving installation with no in-/outlet run needs. The device is compatible with a large range of hygienic process connections and is 3-A and EHEDG compliant, enabling fast recovery from CIP/SIP.

• Transmitter features

  The compact, hygienic dual-compartment transmitter housing with IP69 and up to 3 I/Os provides full access to process and diagnostic information through numerous, freely combinable I/Os and fieldbuses. It reduces complexity and variety with freely configurable I/O functionality and integrated Heartbeat Technology verification. The transmitter features a backlit display with touch control and WLAN access, with a remote display option available.

• Nominal diameter range

  DN 8 to 50 (? to 2″)

• Wetted materials

  Measuring tube: 1.4435 (316L)
  Connection: 1.4435 (316L); 1.4404 (316/316L)

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

• Max. measurement error

  Mass flow (liquid): ±0.10 %
  Volume flow (liquid): ±0.10 %
  Density (liquid): ±0.0005 g/cm?

• Measuring range

  0 to 70 000 kg/h (0 to 2570 lb/min)

• Max. process pressure

  PN 40, Class 150, 20K

• Medium temperature range

  –50 to +150 °C (–58 to +302 °F)

• Ambient temperature range

  Standard: –40 to +60 °C (–40 to +140 °F)
  Option: –50 to +60 °C (–58 to +140 °F)

• Sensor housing material

  1.4301 (304), corrosion resistant

• Transmitter housing material

  AlSi10Mg, coated; stainless steel for hygenic transmitter design

• Degree of protection

  IP66/67, type 4X enclosure
  IP69

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available

• Outputs

  3 outputs:
  4-20 mA HART (active/passive)
  4-20 mA WirelessHART
  4-20 mA (active/passive)
  Pulse/frequency/switch output (active/passive)
  Double pulse output (active/passive)
  Relay output

• Inputs

  Status input
  4-20 mA input

• Digital communication

  HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC

• Product safety

  CE, C-tick, EAC marking

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (T?V S?D attestation)

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  3-A, EHEDG, cGMP
