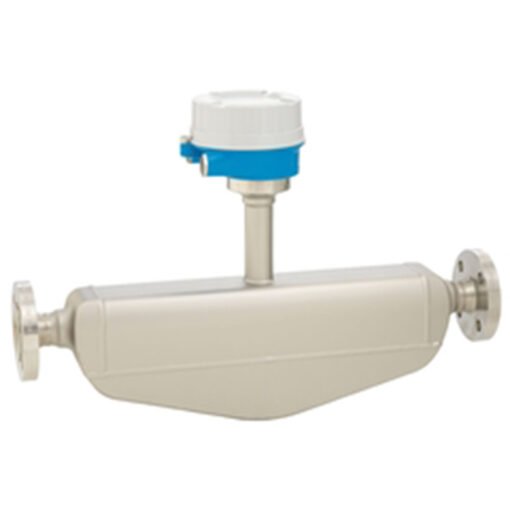

Endress+Hauser Proline Promass H 500 Coriolis flowmeter

Chemically resistant single-tube flowmeter, as remote version with up to 4 I/Os

• Measuring principle

  Coriolis

• Product headline

  Chemically resistant single-tube flow meter, available as a remote version with up to 4 I/Os.
  Provides highly accurate measurement of liquids and gases in applications requiring superior corrosion resistance.

• Sensor features

  Maximum safety for chemically aggressive fluids – corrosion-resistant wetted parts. Reduced number of process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no need for in-/outlet runs.
  Measuring tube made of Tantalum and Zirconium. Nominal diameter ranges from DN 8 to 50 (??? to 2″). Supports medium temperatures up to +205 °C (+401 °F).

• Transmitter features

  Complete access to process and diagnostic information – abundant, freely combinable I/Os and fieldbuses. Simplified complexity and versatility – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
  Remote version available with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable connection between sensor and transmitter.

• Nominal diameter range

  DN 8 to 50 (??? to 2″)

• Wetted materials

  Measuring tube: Tantalum 2.5W; 702 (UNS R60702)
  Connection: Tantalum; 702 (UNS R60702)

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

• Max. measurement error

  Mass flow (liquid): ±0.10 %
  Volume flow (liquid): ±0.10 %
  Mass flow (gas, Tantalum only): ±0.50 %
  Density (liquid): ±0.0005 g/cm?

• Measuring range

  0 to 70 000 kg/h (0 to 2570 lb/min)

• Max. process pressure

  PN 40, Class 300, 20K

• Medium temperature range

  Tantalum: –50 to +150 °C (–58 to +302 °F)
  Zirconium: –50 to +205 °C (–58 to +401 °F)

• Ambient temperature range

  Standard: –40 to +60 °C (–40 to +140 °F)
  Option: –50 to +60 °C (–58 to +140 °F)

• Sensor housing material

  1.4301 (304), corrosion resistant
  Sensor connection housing (standard): AlSi10Mg, coated
  Sensor connection housing (option): 1.4301 (304); 1.4404 (316L); 1.4409 (CF3M) similar to 316L

• Transmitter housing material

  AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat

• Degree of protection

  Sensor remote version (standard): IP66/67, type 4X enclosure
  Sensor remote version (option): IP69. Transmitter remote version: IP66/67, Type 4X enclosure

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible

• Outputs

  4 outputs:
  4-20 mA HART (active/passive)
  4-20 mA WirelessHART
  4-20 mA (active/passive)
  Pulse/frequency/switch output (active/passive)
  Double pulse output (active/passive)
  Relay output

• Inputs

  Status input
  4-20 mA input

• Digital communication

  HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC

• Product safety

  CE, C-tick, EAC marking

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (T?V S?D attestation)

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material
