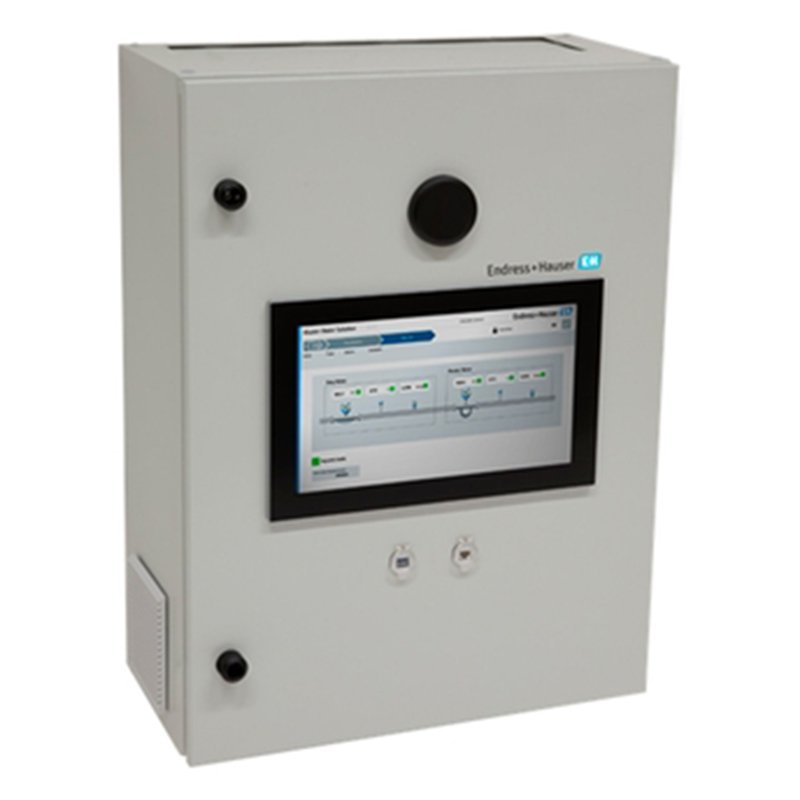

Endress+Hauser Master meter control system DSK1MM

Purpose-built control panel complete with support for up to two master meters in one panel

• Measuring principle

  Coriolis

• Product headline

  Purpose built control system complete with support for up to two master meter runs.

• Solution Features

  The master meter control system has an intuitive self-guided wizard to simplify the proving settings.

• Ambient temperature range

  –10 to +55 °C (+14 to +131 °F)

• Sensor housing material

  Control panel housing material:
  Stainless steel
  Sheet steel painted
  Anodized aluminum

• Degree of protection

  IP66/67, type 4x enclosure (with hazardous area approvals)
  IP54 non-hazardous area

• Display/Operation

  15.6 capacitive touch LCD display

• Outputs

  4 x Digital output (alarms, warning, error)

• Inputs

  6 x 4-20 mA (active/passive)
  4 x Pulse/frequency (active/passive)
  2 x RS485 MODBUS serial

• Digital communication

  Ethernet, OPC UA

• Power supply

  Input: AC 100 to 230 V
  Output: DC 24 V

• Hazardous area approvals

  ATEX, IECEx, QPS C/US, CCC, INMETRO, EAC, UK Ex

• Product safety

  CE
