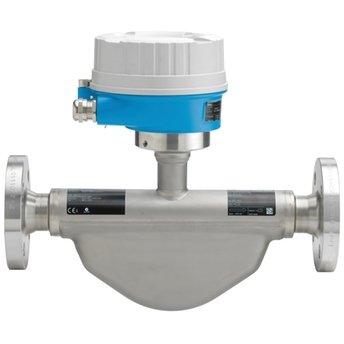

Endress+Hauser LPGmass D8EB Coriolis flowmeter

The refueling and distribution application flowmeter with easy system integration

• Measuring principle

  Coriolis

• Product headline

  A flowmeter designed for refueling and distribution applications, offering easy system integration and accurate measurement of liquefied petroleum gas (LPG).

• Sensor features

  Ensure exceptional operational safety with reliability in extreme ambient conditions. Reduce the number of process measuring points with multivariable measurement capabilities for flow, density, and temperature. Save space with an installation that requires no inlet or outlet runs. Handle flow rates up to 70,000 kg/h (2570 lb/min) and calculate volume flow according to API table 53 standards.

• Transmitter features

  Space-saving transmitter – full functionality on the smallest footprint. Fast commissioning – pre-configured devices. Automatic recovery of data for servicing. Robust, compact transmitter housing. Modbus RS485.

• Nominal diameter range

  DN 8 to 50 (??? to 2″)

• Wetted materials

  Measuring tube: 1.4539 (904L)
  Connection: 1.4404 (316/316L)

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density

• Max. measurement error

  Mass flow (liquid): ±0.20 %
  Volume flow (liquid): ±0.30 %

• Measuring range

  0 to 70 000 kg/h (0 to 2570 lb/min)

• Max. process pressure

  PN 40, Class 300

• Medium temperature range

  –50 to +125 °C (–58 to +257 °F)

• Ambient temperature range

  –40 to +60 °C (–40 to +140 °F)

• Sensor housing material

  1.4301 (304), corrosion resistant

• Transmitter housing material

  AlSi10Mg, coated

• Degree of protection

  IP66/67, type 4X enclosure

• Display/Operation

  No local operation
  Configuration via operating tools possible

• Outputs

  None

• Inputs

  None

• Digital communication

  Modbus RS485

• Power supply

  DC 20 to 30 V

• Hazardous area approvals

  ATEX, IECEx, cCSAus, NEPSI, INMETRO

• Product safety

  CE, C-Tick

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1‐Material
