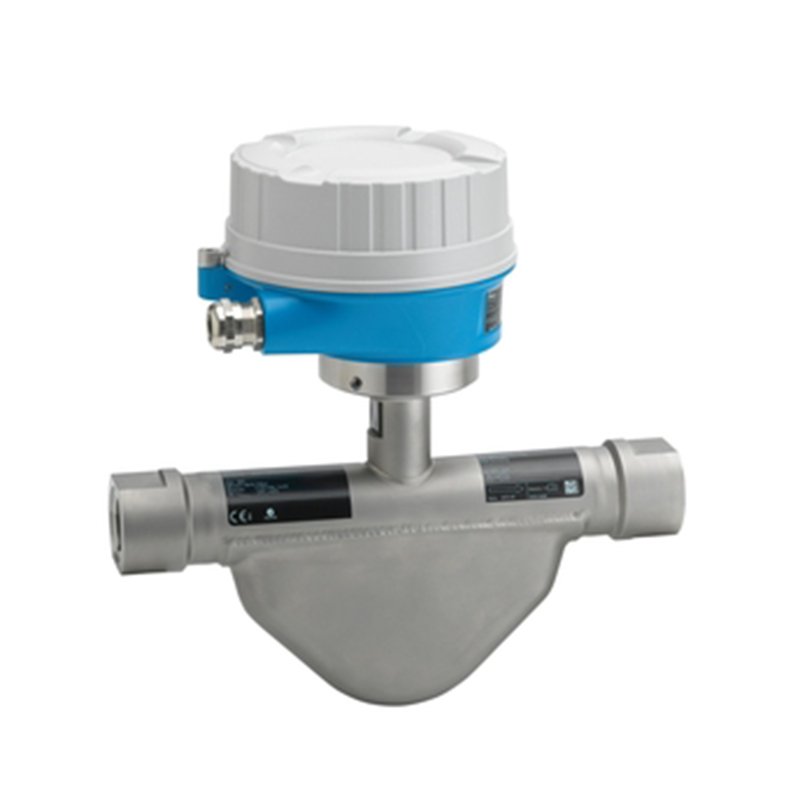

Endress+Hauser CNGmass D8CB Coriolis flowmeter

Refueling application flowmeter with easy system integration

• Measuring principle

  Coriolis

• Product headline

  The refueling application flowmeter with seamless system integration. Accurate measurement of compressed natural gas (CNG) in high pressure refueling applications.

• Sensor features

  Ensure excellent operational safety with reliability under extreme process conditions. Reduce the number of process measuring points with multivariable measurement capabilities for flow, density, and temperature. Save space with an installation that requires no inlet or outlet runs. Handle flow rates up to 150 kg/min (330 lb/min) and process pressures up to 350 bar (5080 psi).

• Transmitter features

  Compact and space-saving transmitter with full functionality packed into the smallest footprint possible. Facilitates fast commissioning with pre-configured devices and ensures automatic data recovery for easy servicing. Housed in a robust and compact enclosure, it supports Modbus RS485 for seamless integration into industrial communication networks.

• Nominal diameter range

  DN 8 to 25 (? to 1″)

• Wetted materials

  Mesuring tube: 1.4435 (316L)
  Connection: 1.4404 (316/316L)

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density

• Max. measurement error

  Mass flow: ±0.5 % of batch

• Measuring range

  0 to 150 kg/min (0 to 330 lb/min)

• Max. process pressure

  350 bar (5080 psi)

• Medium temperature range

  –50 to +125 °C (–58 to +257 °F)

• Ambient temperature range

  –40 to +60 °C (–40 to +140 °F)

• Sensor housing material

  1.4301 (304), corrosion resistant

• Transmitter housing material

  AlSi10Mg, coated

• Degree of protection

  IP66/67, type 4X enclosure

• Display/Operation

  No local operation
  Configuration via operating tools possible

• Outputs

  None

• Inputs

  None

• Digital communication

  Modbus RS485

• Power supply

  DC 20 to 30 V

• Hazardous area approvals

  ATEX, IECEx, cCSAus, NEPSI, INMETRO

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

• Pressure approvals and certificates

  CRN

• Material certificates

  3.1 material
