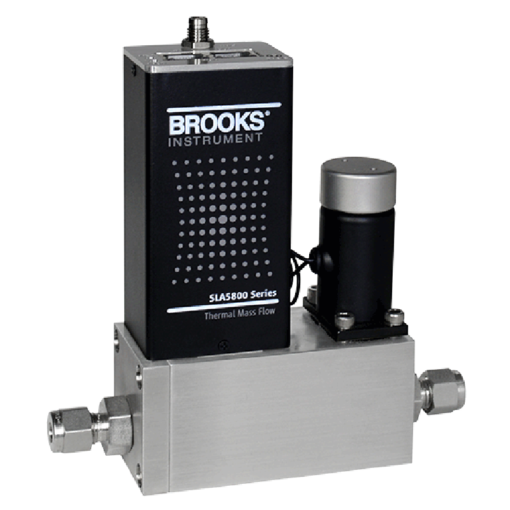

SLA5800 Series Elastomer Sealed Thermal Mass Flow Controllers & Meters

Advance and simplify your mass flow control.

Models SLA5850 / SLA5851 / SLA5853 / SLA5860 / SLA5861 / SLA5863

Features:

• Accredited with ISO/IEC 17025
• SLA Series Biotech MFC offers two package options tailored for bioprocessing performance improvement
• Long-term zero stability of <0.2% full scale per year
• High accuracy supported by traceable calibration standards
• Wide range of flow ratings from 0.003 up to 2500 lpm
• Highest pressure ratings up to 1500 psi/100 bar (optional: 4500 psi/310 bar)
• Programmable multi-gas/multi-range capabilities
• Independent and easily accessible diagnostic/service port

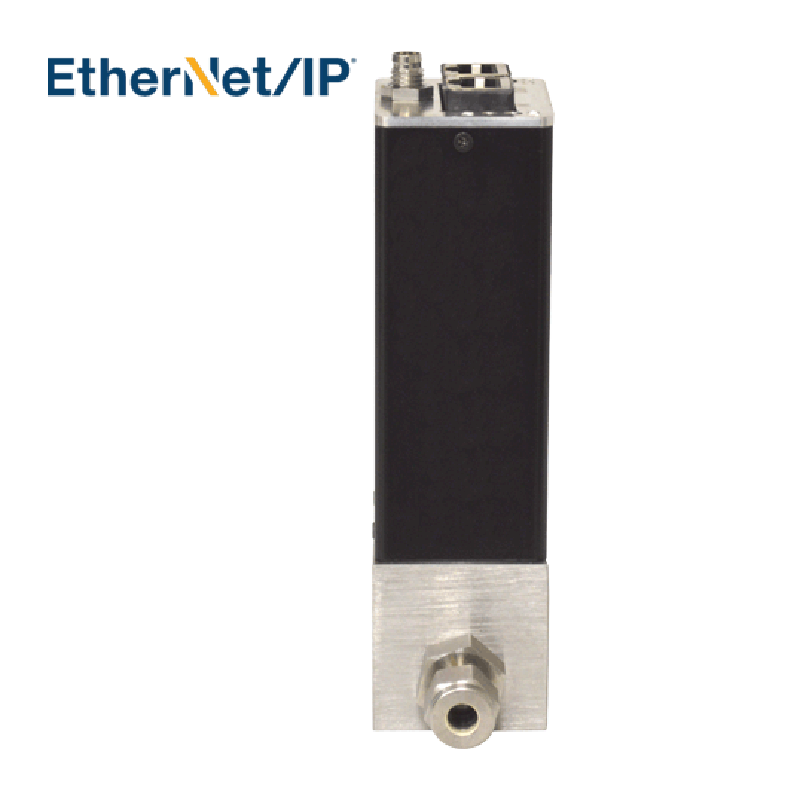

• Various communication options, including EtherNetIP? and PROFINET with web-based interface for easy network configuration
• Modular design for easy servicing in the factory or field

Benefits:

• ISO/IEC 17025 certification and calibration available with flow accuracy of ±0.6% of SP
• Enhanced valve shut-off, wide turndown, certifications and approvals (USP Class VI/ADI-free) for elastomeric materials in the MFC’s gas stream
• Long-term sensor stability reduces maintenance and recalibration requirements, lowering total cost of ownership
• Brooks Instrument thermal sensing technology provides superior signal-to-noise performance for improved accuracy at low set points
• One device platform for different gases and flow ranges
• Storage and pre-programming of up to six gas calibrations for easy switching and reduced inventory
• User-accessible service port simplifies installation, troubleshooting, and diagnostics
• Durable metal top lid prevents damage during installation
• EtherNet/IP? and PROFINET enable additional diagnostics for real-time system information
• Traceable calibrations to meet industry standards and regulatory requirements

Applications:

• Life sciences
• Chemical and petrochemical catalyst research and pilot processes
• Laboratory and analytical systems
• Fuel cell technology
