Specifications
Output variables
- Mass flow
- Volume flow
Local display
Standard user interface with 2-line LCD panel
- Two optical switches for local operation
- Glass or plastic lens options
Power
Self-switching AC/DC input, automatically recognizes supply voltage
- 85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
- 18 to 100 VDC, 6 watts typical, 11 watts maximum
- Complies with low voltage directive 2006/95/EC per EN 61010-1 (IEC 61010-1) with amendment 2, and Installation (Overvoltage) Category II, Pollution Degree 2
Input/output signals
- One active 4–20 mA output
- One active frequencty output
- Frequency output can be configured as a discrete output
Application types
- Continuous process control
- Two-phase flow/entrained gas
- Meter verification
- SIS Certified
HART
- Bell 202 signal is superimposed on the primary milliamp output
Mounting options

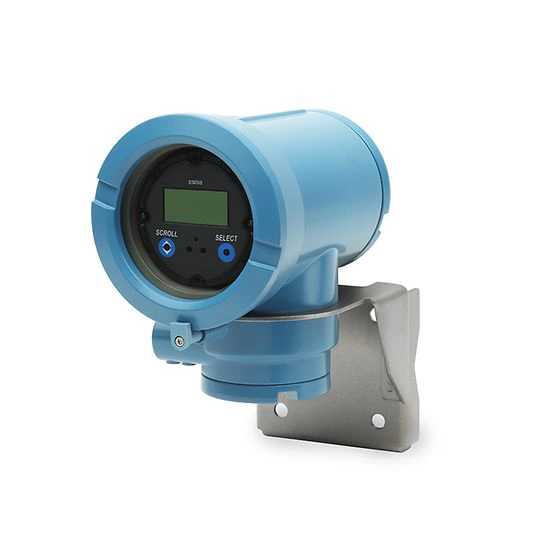

Field-mount
- Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor
- Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor
Hazardous approvals
- Class I, Div. 1
- Class I, Div. 2
- Zone 1
- Zone 2
