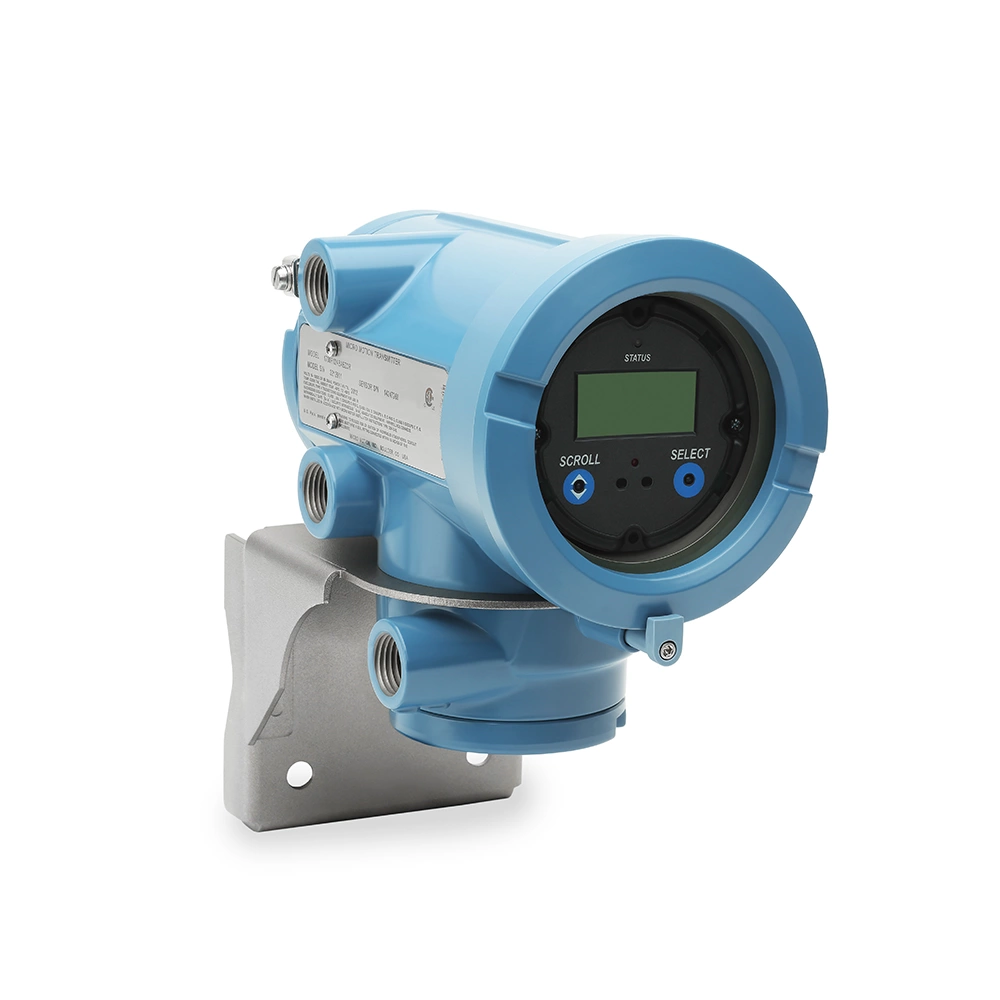

Micro Motion™ 2700 Field And Integral-Mount Multivariable Flow And Density Transmitter

Output variables

Mass & volume flow
Net product content / flow
Temperature
Density
Concentration

Local display

Standard user interface with 2-line LCD panel
Two optical switches for local operation
Glass or plastic lens options

Power

Self-switching AC/DC input, automatically recognizes supply voltage
85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
18 to 100 VDC, 6 watts typical, 11 watts maximum
Complies with low voltage directive 2006/95/EC per EN 61010-1 (IEC 61010-1) with amendment 2, and Installation (Overvoltage) Category II, Pollution Degree 2

Input/output signals

1. Not intrinsically safe

Analog output option:

• One active 4–20 mA output
• One active frequency output
• Frequency output can be configured as a discrete output

Configurable I/O option:

• One or two active 4-20 mA outputs
• One or two active/passive frequency outputs
• One or two active/passive discrete outputs
• One discrete input

2. Intrinsically safe

Analog output option:

• One passive 4-20 mA output
• One passive frequency output
• Frequency output can be configured as a discrete output

Foundation™ fieldbus (Obsolete)

• optionally non-incendive
• One Foundation fieldbus H1 output

PROFIBUS-PA (Obsolete)

• One PROFIBUS-PA output

HART/WirelessHART

Bell 202 signal is superimposed on the primary milliamp output
WirelessHART available via THUM adapter
HART communication is unavailable on Foundation fieldbus and PROFIBUS-PA transmitter versions

Mounting options

Field-mount

• Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor
• Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor

Application types

Continuous process control
Custody transfer
Two-phase flow/entrained gas
Meter verification
SIS Certified

Hazardous approvals

Class I, Div. 1
Class I, Div. 2
Zone 1
Zone 2
