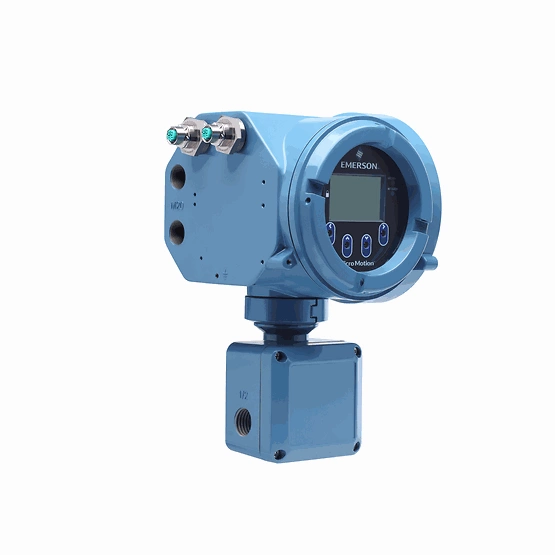

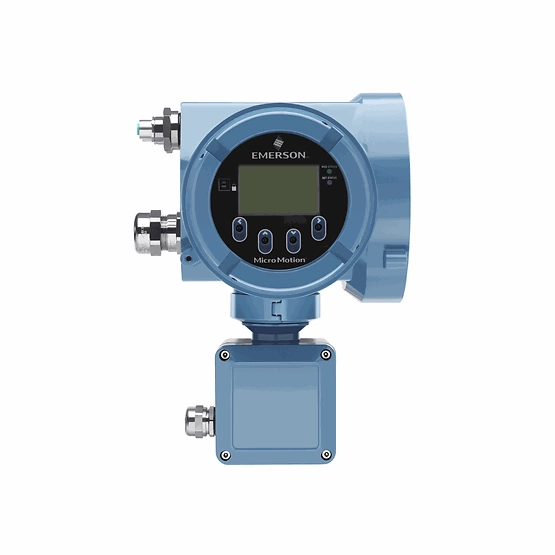

Product Description
Delivering the best in measurement technology and unparalleled support, the 5700 transmitter’s intuitive design ensures measurement confidence, valuable process insight and productivity through simplified solutions. Data historian feature captures rich information about process events, fluid quality, and measurement stability – over long and short periods of time. Zero Verification tool provides confidence in the meter zero and analyzes process conditions to indicate potential issues for re-zeroing.
Specifications
Wi-Fi Display Option:
Wi-Fi display option enables point-to-point wireless communication in order to configure and characterize the meter, download historical files, and run Smart Meter Verification for troubleshooting purposes. Available for the 5700 Config I/O version only.
Certificates/Approvals
Hazardous approvals
- Class I, Div. 1
- Class I, Div. 2
- Zone 1
- Zone 2
SIL/SIS Certification
- 5700 Config I/O and Intrinsically Safe versions are certified for SIL2 single use and SIL3 multiple use safety applications per IEC 61508. Please refer to the Safety Manual in the document manuals and guides section.
Local display
- Graphical backlit display
- Four-button optical controls
- Flowmeter-status LED
- Supports English, German, French, Spanish, Portuguese, Russian, Chinese, and Japanese languages.
Ethernet version
- Dual Ethernet ports supporting EtherNet/IP, Modbus TCP, and PROFINET all in one device
- Additional channel included configurable to mA output, pulse output, discrete output, or discrete input
- Pre-installed M12 quick connections available as an option
Power
- Self-switching AC/DC input, automatically recognizes supply voltage
- 85 to 2405 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
- 18 to 100 VDC, 6 watts typical, 11 watts maximum
- Complies with Low Voltage Directive 2006/95/EC per IEC 61010-1 Ed. 3.0 2010-06; Overvoltage Category II, Pollution Degree 2
Universal Service Port
Universal Service Port design allows for connection and data transfer using standard, readily available equipment.
Configurable I/O version
Up to 5 licensable channels with the following possible configurations:
- 1 to 3 4-20 mA outputs
- 1 to 3 Pulse outputs
- 1 to 3 Discrete outputs
- 1 to 2 Discrete inputs
- 1 mA input
- 1 Modbus/RS-485
Channel A: mA/HART
Channel B: mA/FO/DO
Channel C: mA/FO/DO/DI
Channel D: mA-input/FO/DO/DI
Communication Protocol
WirelessHART
- WirelessHART available with the 775 Smart Wireless THUM adapter.
FOUNDATION Fieldbus version
- FOUNDATION Fieldbus channel
- mA output
- Pulse output
PROFIBUS-PA version
- PROFIBUS-PA channel
- mA IS output
- Pulse IS output
Wi-Fi Display Option
Wi-Fi display option enables point-to-point wireless communication in order to configure and characterize the meter, download historical files, and run Smart Meter Verification for troubleshooting purposes. Available for the 5700 Config I/O version only.
Intrinsically Safe version
Up to 4 licensable IS channels with the following configurations:
- Channel A: mA/HART
- Channel B: mA
- Channel C: mA/FO
- Channel D: FO
- Channel E: Not Used
SIL Certified Device Available – Uses an internal readback loop to verify the milliamp output
Mounting options
- Field-mount aluminum and stainless steel housing options
- Integrally mounted to a Micro Motion ELITE (CMFS), F-series, H-series, R-series, or T-series Coriolis sensor (aluminum only)
- Remotely mounted to any 4-wire or 9-wire Micro Motion ELITE®, F-series, H-series, R-series, or T-series Coriolis sensor (aluminum and stainless steel versions)
Application types
- Smart Meter Verification Professional
- Discrete batch control
- Petroleum measurement and API correction option
- Concentration measurement
- Advanced Phase Measurement for two phase flow remediation
- Piecewise Linearization for Gas Applications
Certificates / Approvals
Hazardous approvals
- Class I, Div. 1
- Class I, Div. 2
- Zone 1
- Zone 2
SIL/SIS Certification
- 5700 Config I/O and Intrinsically Safe versions are certified for SIL2 single use and SIL3 multiple use safety applications per IEC 61508. Please refer to the Safety Manual in the document manuals and guides section.
